Extension of the new Nuremberg - Ebensfeld line
As a result of the merging of the former two German states, the federal government created the "German Unity" transport project. The extension and new construction of the railway connection from Munich via Nuremberg to Erfurt and on via Leipzig/Halle to Berlin made a significant contribution to reducing travel times on this route. It should be emphasised that the realisation of the S-Bahn line from Nuremberg to Forchheim is integrated into this project. In addition to the expansion of an important international transit route, this will also considerably improve local transport connections between the cities of Nuremberg, Fürth, Erlangen, Forchheim and the settlement areas in between.
Planning section Nuremberg main station-Fürth-Erlangen-Bai-ersdorf (GRE/Obermeyer). Road 5900/Str. 5919, km 0.0-km 32.4

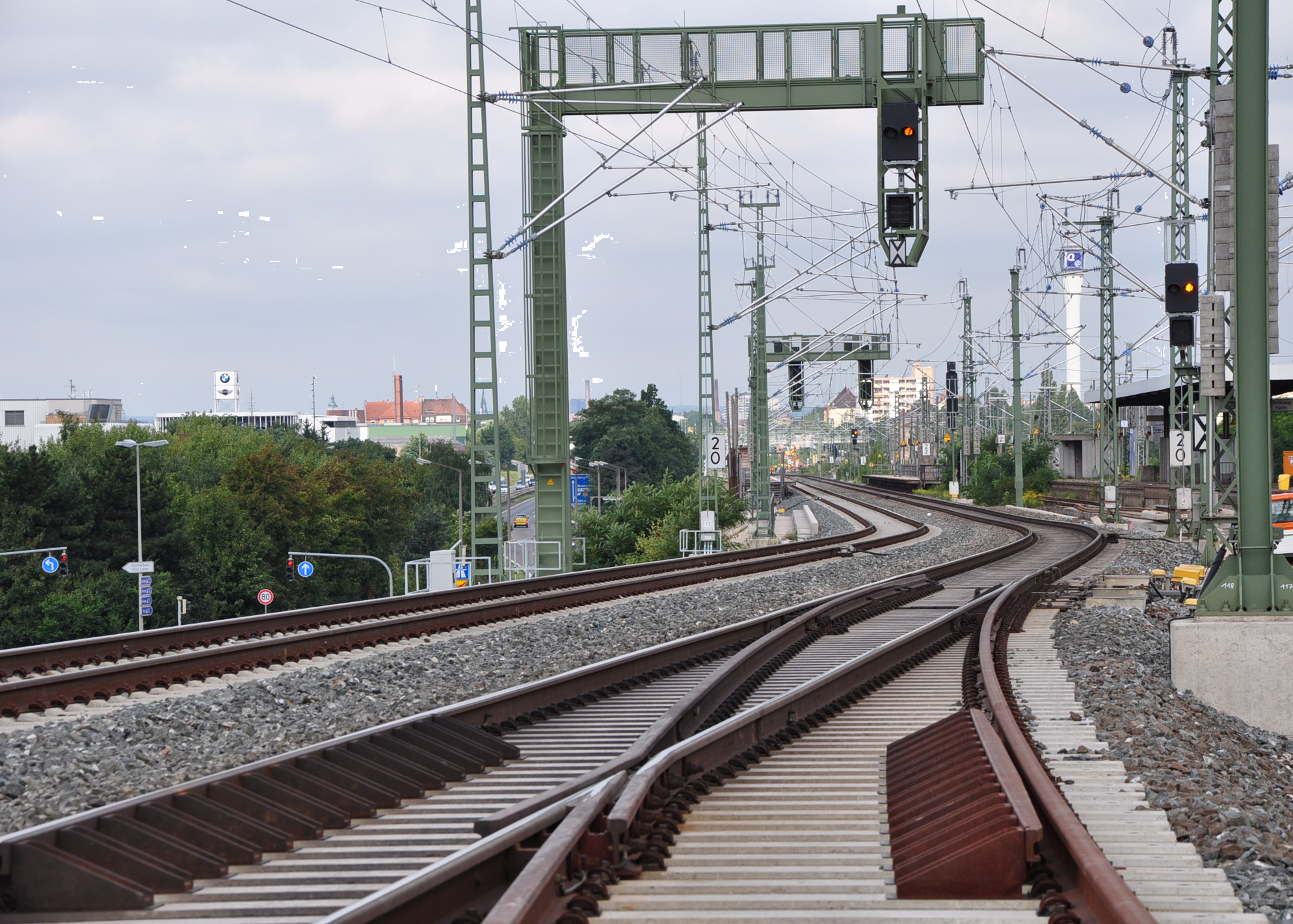

4-track railway line:
- 2-track high-speed line: approx. 35 km
- 2-track suburban railway line: approx. 35 km
- Line 5900 line speed: 160 km/h
- Line 5919 line speed: 230 km/h
- Stabling tracks for suburban railway
- Total route kilometres: approx. 35 km
- 140 km ballast superstructure
- 56 points
- 24 bridge structures
- 21 retaining walls
- 12 running km of noise barriers
- 23 culverts
- 18 platforms (edges)
Disciplines
- Railways
Companies
GRE German Rail Engineering GmbH
Client
DB ProjektBau GmbH Regionalbereich Südost
Duration
From 1992 to 2018
Location
Nuremberg Metropolitan Region (Bavaria), Germany
Project Activities
Traffic facilities/engineering:
- Project planning of civil engineering structures Lph 2-4, partly 6-7
- Project planning for traffic facilities Lph 1-4, tlw. 5-7
- Structural engineering Lph 2-3, tlw. 6
Control and safety technology:
- New construction and adaptation of SIMIS C/D electronic interlockings in the stations Fürth (Bavaria), Vach, Eltersdorf, Erlangen.
- Adaptation of relay interlockings of the SpDrS60 / SpDrS600 type at Fürth (Bavaria) and Nuremberg stations
- Deconstruction and adaptation of level crossing safety systems and old interlockings in Nuremberg station
50 Hz systems
- Adaptation of the power supply in the Erlangen (ESTW) and Nuremberg (SpDrS600) signal boxes
- Platform and shunting path lighting
- Electrical point heating including point heating stations / transformer station Eltersdorf
- Cable installations
Telecommunications installations
- MAS 90
- EMA, BMA
- Transmission technology
- Cable systems
- The services comprise phases 1-6.
